Wall construction technology

holzhauser Wall construction technology
Wall construction

Technology

Our energy-efficient wall system is engineered to provide exceptional protection against heat, cold, noise, and fire — all while ensuring lasting structural stability. With high-performance insulation and premium material layering, every wall is designed to meet the highest standards of comfort, safety, and durability.

Superior Protection with Our Wall System

On the interior side, double structural reinforcement is achieved through a combination of 12.5 mm fire-rated plasterboard and 15 mm engineered wood panels, offering outstanding static stability for decades to come.

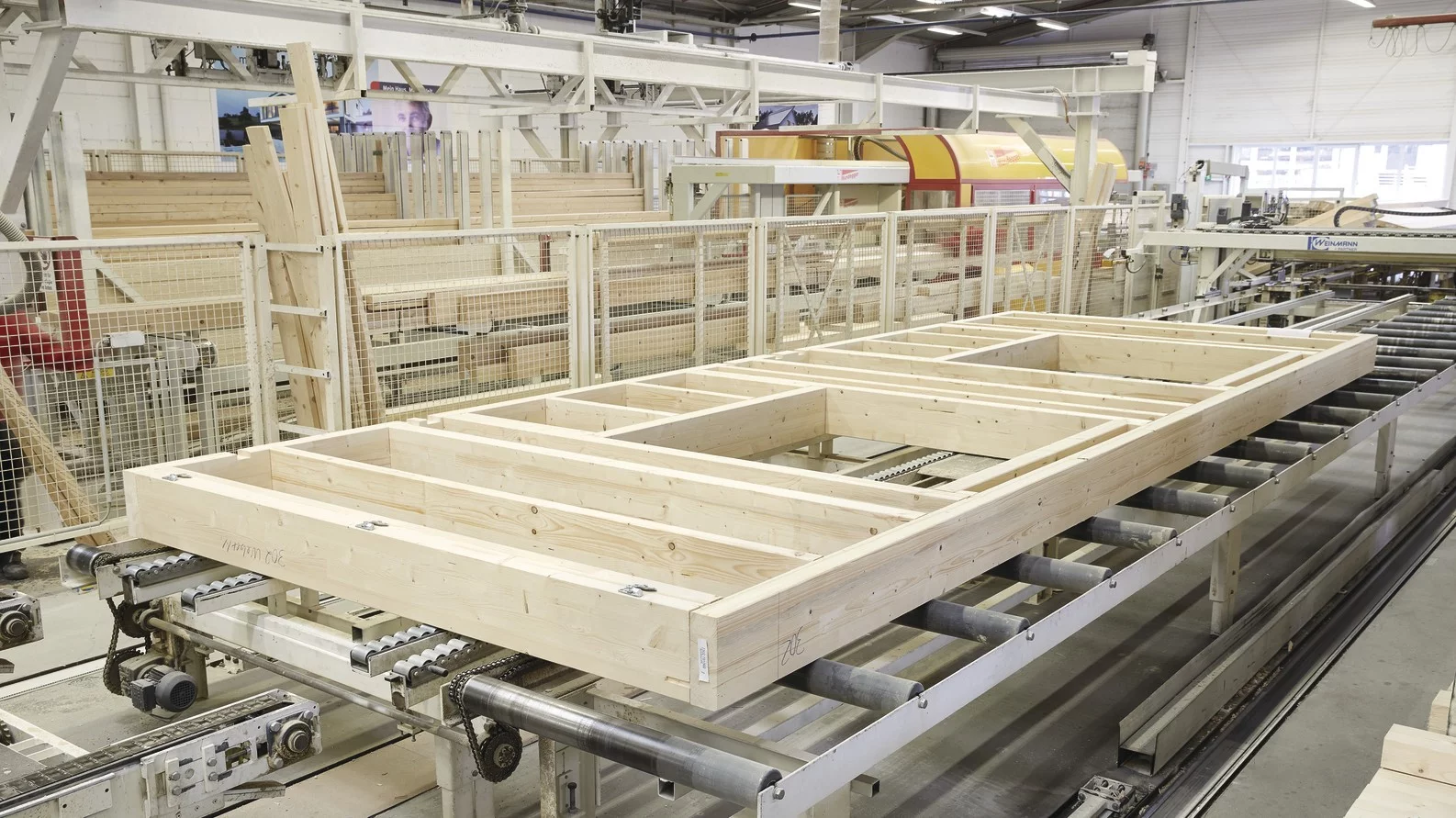

All wall elements are precision-prefabricated in our Romanian facility, under controlled indoor conditions. This guarantees a consistently high build quality, with no exposure to moisture or weather during production. Thanks to this dry construction method, your home benefits from better thermal performance and shorter on-site assembly time.

Whether in the chill of winter or the heat of summer, our walls maintain a stable, pleasant indoor climate — reducing your energy costs and increasing long-term comfort.

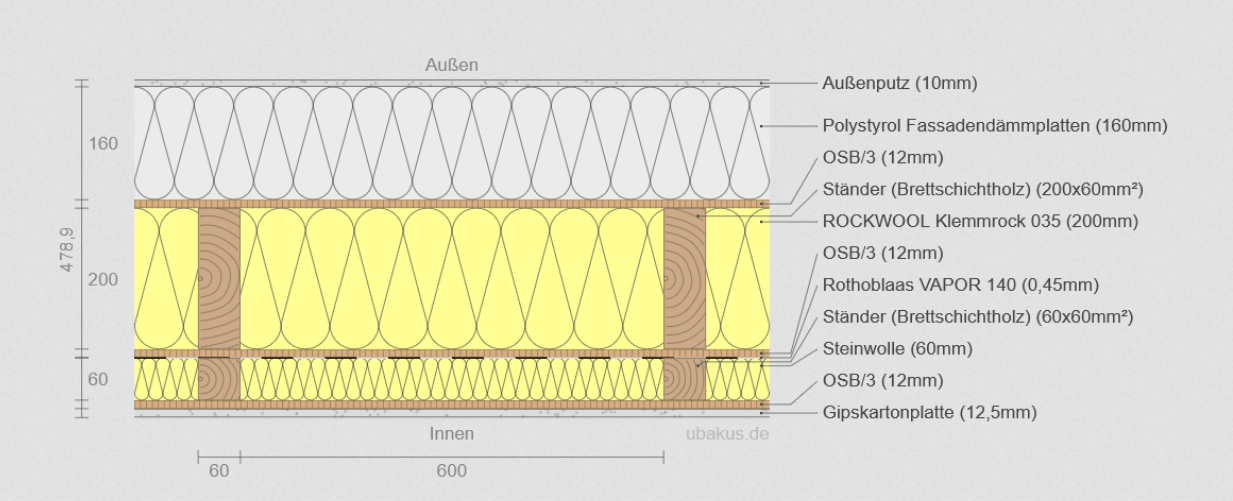

Passive Thermo

paSSIVE HOUSE WAND

The Passive House Wall achieves exceptional energy performance with a compact profile — delivering ultra-low heat loss, outstanding indoor comfort, and compliance with Passive House and NZEB standards. Designed for long-term sustainability, it combines advanced materials and precise prefabrication to meet the highest demands in energy-efficient timber construction.

Wall thickness: 479 mm
U-Value: 0.086 W/(m²K)
Compliance: GEG 2023 / EnEV / Low-energy ready
Outside Face

The exterior layer ensures weather resistance, breathability, and added thermal performance — while remaining fire-retardant and vapor-permeable.

Exterior Finish Fine plaster
Insulation 160 mm Polystyrene facade insulation panels
Structure

The structural core of the wall provides load-bearing strength and excellent thermal insulation thanks to its solid timber frame and mineral wool filling.

Board 12 mm engineered wood panel
Timber Frame 200 x 80 mm
Insulation 200 mm mineral wool
Inside Wall

Interior layers provide additional thermal and acoustic insulation while ensuring vapor control and fire resistance for long-term safety and comfort.

Board 12 mm engineered wood panel
Vapor Barrier PE vapor control foil
Timber Substructure 60 x 60 mm
Additional Insulation 60 mm rock wool
OSB Layer 12 mm oriented strand board
Interior Finish 12.5 mm fire-rated gypsum board

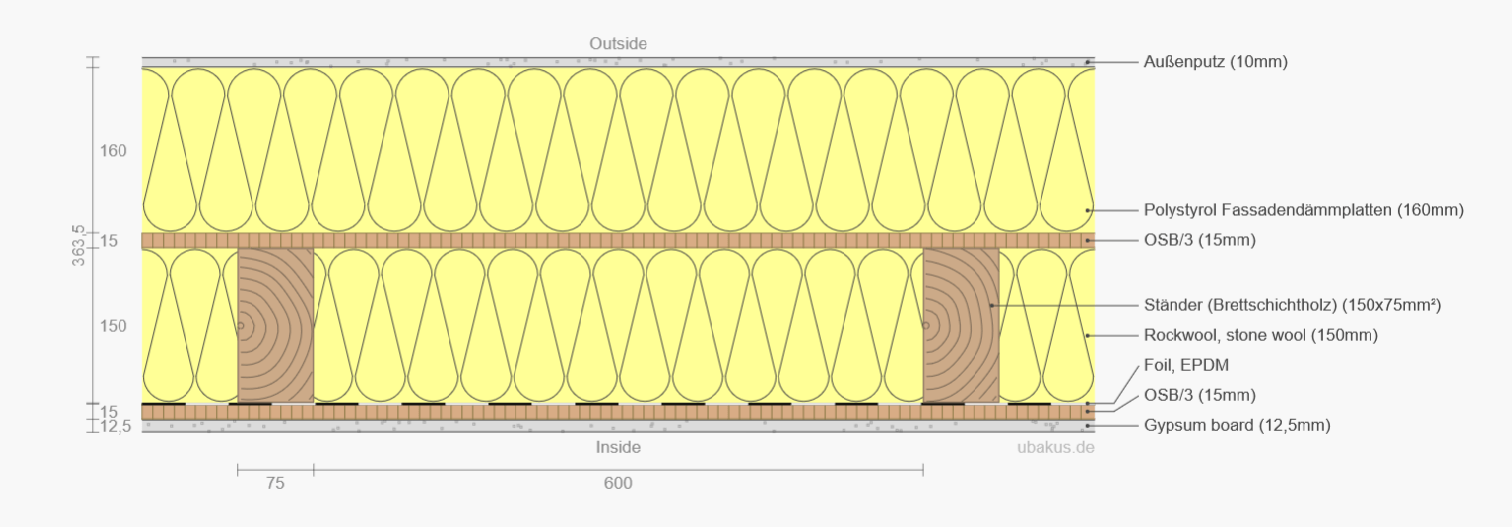

Efficient 40 Plus

efficient 40 plus wand

Using advanced technology and premium materials, the Efficient 40 Plus wall system delivers top-tier thermal insulation while keeping the overall wall thickness reduced — giving you more usable interior space and a sleek construction profile without sacrificing energy performance.

Wall thickness: 364 mm
U-Value: 0.112 W/(m²K)
Compliance: GEG 2023 / EnEV / Low-energy ready
Outside Face

The exterior layer ensures weather resistance, breathability, and added thermal performance — while remaining fire-retardant and vapor-permeable.

Exterior Finish Fine plaster
Insulation 160 mm Polystyrene facade insulation panels
Structure

The structural core of the wall provides load-bearing strength and excellent thermal insulation thanks to its solid timber frame and mineral wool filling.

Board 15 mm engineered wood panel
Timber Frame 150 x 75 mm
Insulation 150 mm mineral wool
Inside Wall

Interior layers offer structural stability and fire resistance, while providing a clean finish ready for interior decoration.

Anti-vapor film Rothoblaas VAPOR 140
Board 15 mm engineered wood panel
Interior Finish 12.5 mm fire-rated gypsum board

Housefabrik CEO

Our wall systems are the result of years of research and hands-on experience. Every layer is designed for performance — thermal efficiency, fire safety, and long-term durability — all produced with precision in our factory. We don't just build walls; we build trust, comfort, and energy-efficient homes.
